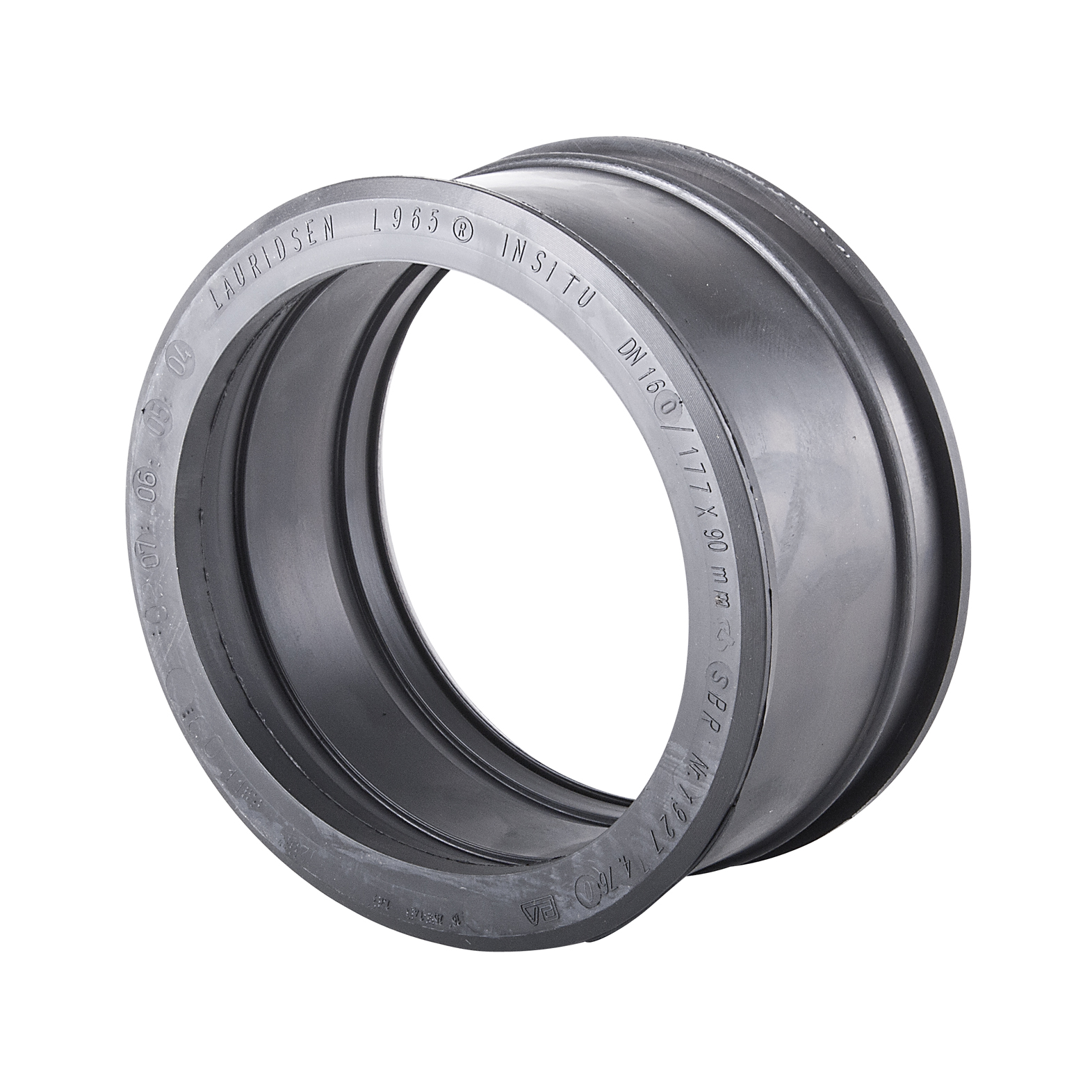

Insitu-Seal 160/177x90 NBR
Product No.: 192774761 Product No.: 192774761 DB No.: 5698398Login
The Insitu-Seal is used for connecting a pipe to both a twinwall pipe or plastic well. Long model with built in stop. Produced in NBR rubber. Drill hole diameter: OD 177 mm.
- Insitu-Seal 160/177x90 NBR
- For smooth plastic pipes
- With built in stop
- Max. wall thickness: 65 mm
- Diameter: OD 160x90 mm
- Drill hole diameter: 177 mm
Show more +
Show less −
Product information
Insitu-seal
Insitu-Seal provides an efficient method of making a 90° connection into twinwall and ribbed pipe systems.
By drilling a hole into the twinwall or ribbed pipe, the Insitu-Seal is then inserted to allow the connecting pipe to be positioned until it reaches the bottom of the seal. The Insitu-Seal is manufactured in NBR rubber with SBR available upon request.
Advantages
- Easy installation
- Cost effective
- VA-approved
- With built in stop
Product specs
- EAN/GLN No.:
- 5711340006960
- DB No.:
- 5698398
- Product No.:
- 192774761
- Customs Tariff No.:
- 40169300
- Specification:
- Ø160/90 mm
- Max.:
- 200
- Pat. Pend:
- Pat. EP1669658
- Unit:
- Pcs.
- Weight in kg:
- 0,75
- Number per box:
- 16
- Number per pallet:
- 384
- Dimension Minimum (mm) 1:
- 160
- Dimension Maximum (mm) 1:
- 160
- Dimension Minimum (mm) 2:
- 160
- Dimension Maximum (mm) 2:
- 160
- Højde 1 (mm):
- 90mm
- Material:
- NBR
- Drill hole (mm):
- 177
- Call for a price:
- Yes
Show more +
Show less −
Documents/Video
| Name | Type | Size |
|---|---|---|
VA 2.21_18319_LSK og Insitu.pdf
|
696 KB | |
|
vejledning_taetningssystem_insitu.pdf
|
155 KB | |
|
Tætningssystemer.pdf
|
12106 KB | |
| Video | - |
