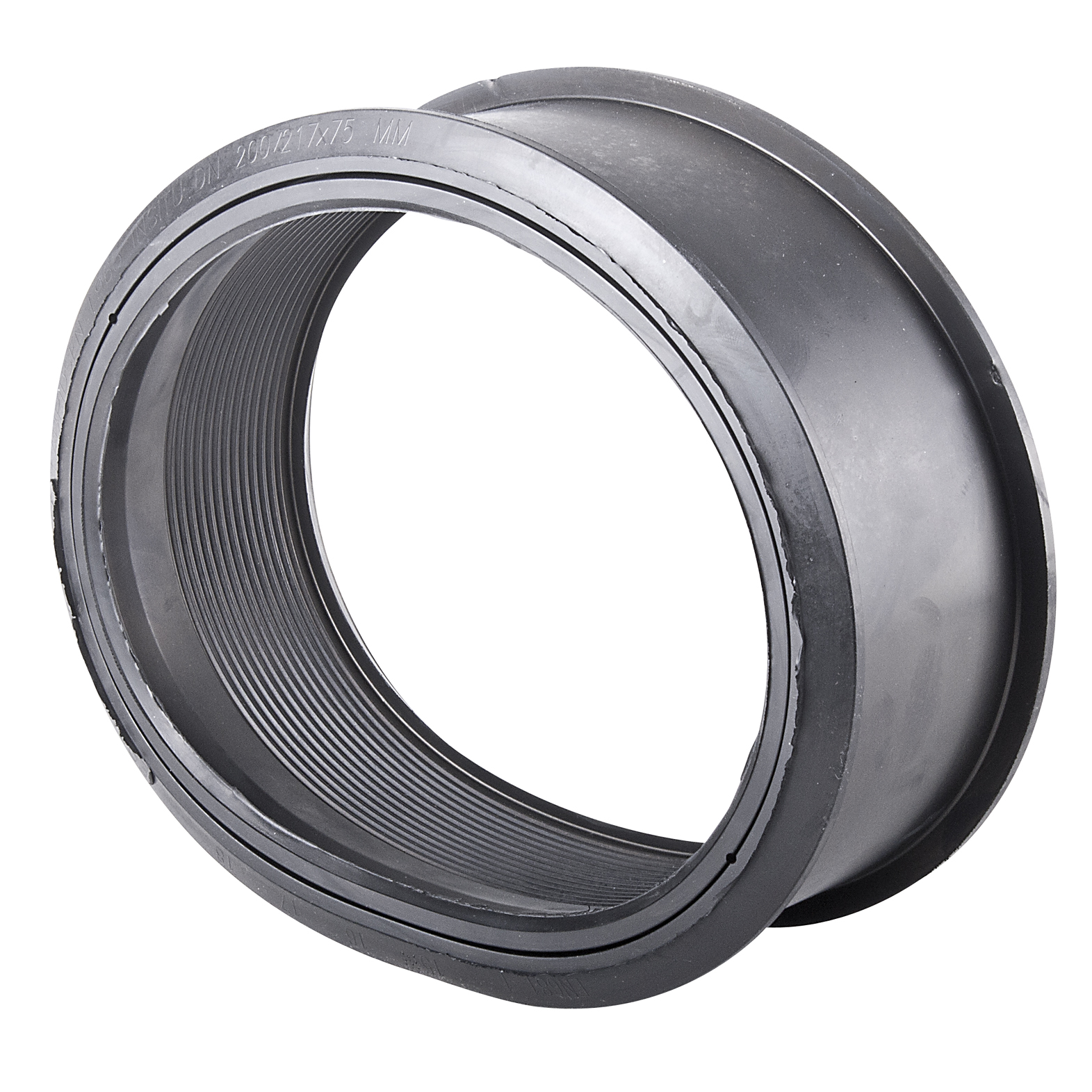

Insitu-Seal 200/217x75 EPDM
Product No.: 192774200 Product No.: 192774200 DB No.: 1840291Login
The Insitu-Seal is used for connecting a pipe to both a twinwall pipe or plastic well. Short model with built in stop. Produced in EPDM rubber. Drill hole diameter: OD 217 mm.
- Insitu-Seal 200/217x75 EPDM
- For smooth plastic pipes
- With built in stop
- Max. wall thickness 55 mm
- Diameter: OD 200x75 mm
- Drill hole diameter: 217 mm
Show more +
Show less −
Product information
Insitu-seal
Insitu-Seal provides an efficient method of making a 90° connection into twinwall and ribbed pipe systems.
By drilling a hole into the twinwall or ribbed pipe, the Insitu-Seal is then inserted to allow the connecting pipe to be positioned until it reaches the bottom of the seal. The Insitu-Seal is manufactured in SBR rubber with nitrile available upon request.
Advantages
- Easy installation
- Cost effective
- VA-approved
- With built in stop
Product specs
- EAN/GLN No.:
- 5711340027361
- DB No.:
- 1840291
- Product No.:
- 192774200
- Customs Tariff No.:
- 40169300
- Specification:
- Ø200/75 mm
- Unit:
- Pcs.
- Weight in kg:
- 0,8
- Number per box:
- 15
- Number per pallet:
- 225
- Dimension Minimum (mm) 1:
- 200
- Dimension Maximum (mm) 1:
- 200
- Dimension Minimum (mm) 2:
- 200
- Dimension Maximum (mm) 2:
- 200
- Højde 1 (mm):
- 75mm
- Material:
- EPDM
- Drill hole (mm):
- 217
- Call for a price:
- Yes
